Dry Van Trailer
Packages are specifically engineered to accommodate equipment loading axle weight distribution regulations. Consult SESCO with special requests.
The size and weight capacities of a dry van trailer accommodate a wide variety of options and equipment accessories. Dry van trailer packages are specifically engineered to accommodate equipment loading axle weight distribution regulations.
Height
162” Standard
152” Minimum (Custom)
Axles & Suspension
Tandem 20K Air Ride
Single 20K Air Ride (28 Ft only)
Construction Options
Standard Reinforced Aluminum Sheet & Post
Dual main beam sub-frame w/ FRP sidewalls
Common Features
Single piece aluminum roof
Hardwood flooring
Lined interior sidewalls (Sheet & Post)
DOT LED lighting
Radial tires w/ aluminum outside wheels
Factory full swing rear doors
Custom installed entry and access doors as required
Rear independent landing gear optional
Chassis Options
All MFG Options
Body Options
FRP or Aluminum sheet and post sidewall body
Rear hydraulic lift gates
Leveling systems
SS body hardward
SS door frames
Sidewall insulation
Oil Connection Options
Dual rear
Dual belly (road & curbside)
Single rear with rear hose reel
Vacuum Connection Options
Single rear door accessible connection
Dual belly (road & curbside) connections
Dual sidewall connections (road & curbside)
Heavy Duty Aluminum Entry Stairs
Single or dual removable handrails
Belly-mounted pull-out entry landing
Belly SS stair storage assembly
External Storage
Boxes
Aluminum diamond plate, lockable, weather-tight
18", 24", & 28" heights
24", 36", 48", & 60" widths
18"-96" depths
Floor liners
Waste oil tank
Pull work tables
Area Partitions
Control area
Lab area
Storage area
Generator area
Clear full view breakaway sliding access door partitions
Traditional solid partition w/ hinged steel access door
Optional exterior sound insulation
Entry & Access Doors
Trailer grade Duraplate construction with locking cam
304 SS commercial-grade exterior man door & frame
Deadbolt lockset
Observation window
Windows
Non-opening man door & sidewall
Opening sidewall
Ventilation
Standard provided as required
Actuated louvers optional
LED Lighting
Exterior flush wall mount flood
Interior ceiling mount
120V/1PH Power
Load center circuit breaker controlled
GFIC circuits
15A zones as required
Shore power provisions
Test Apparatus Power
230V/3PH Power - 30A circuit with 50' cable
220V/1PH Power - 30A circuit with 50' cable
Heating & Air Conditioning
Numerous options available
Insulation
Control area, ceiling and wall insulation available
Sound insulation
Furniture
Industrial grade - welded extreme heavy duty, built to order
Commercial grade
Accessory Options
ANSUL fire suppression systems
Surveillance systems
Primary power sound attenuated diesel generator
Secondary accessory power diesel generators
Test equipment

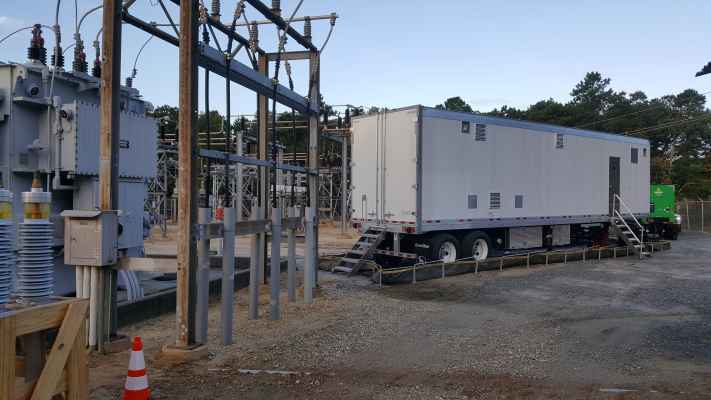

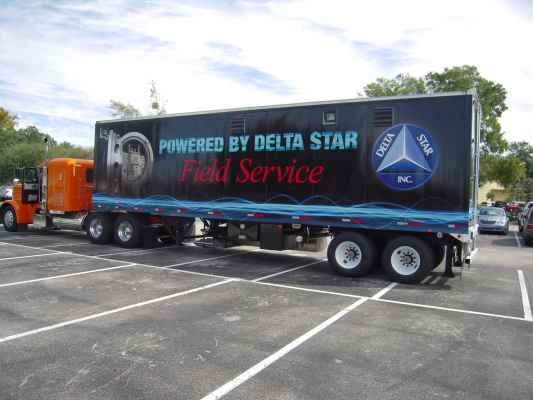

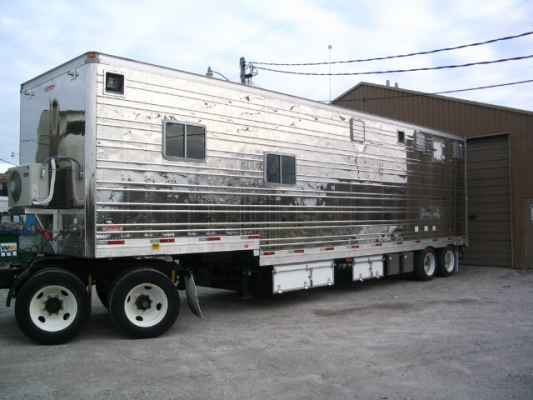

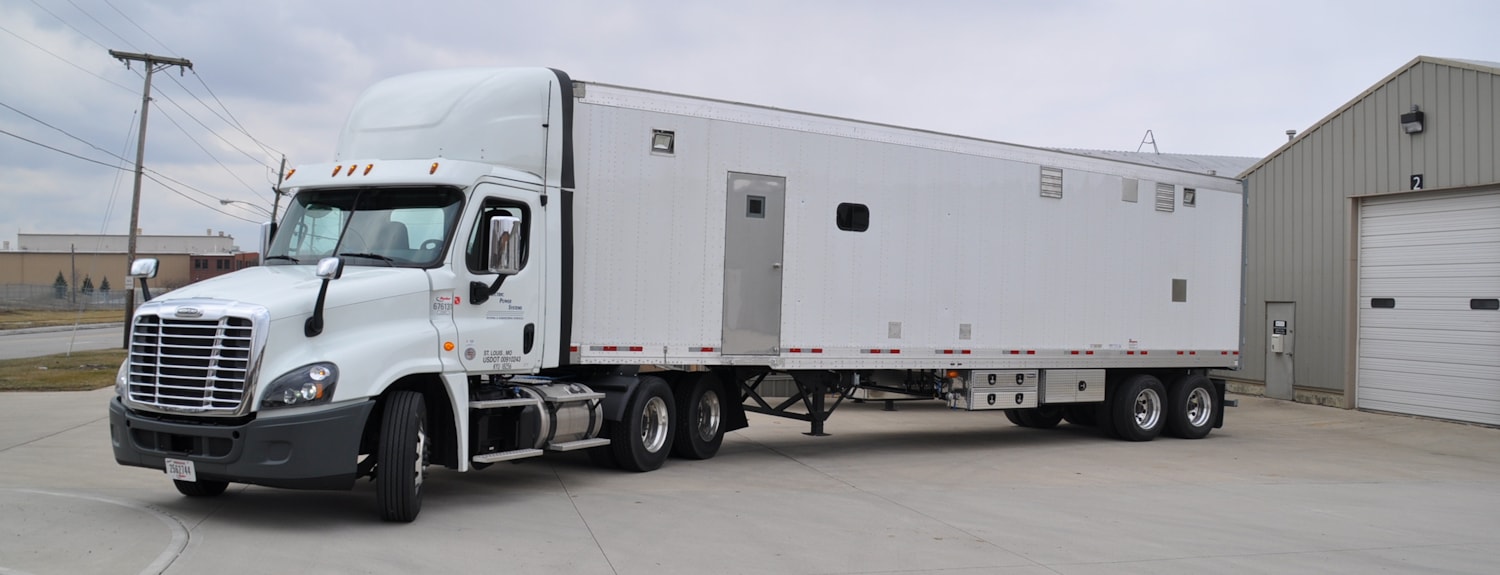

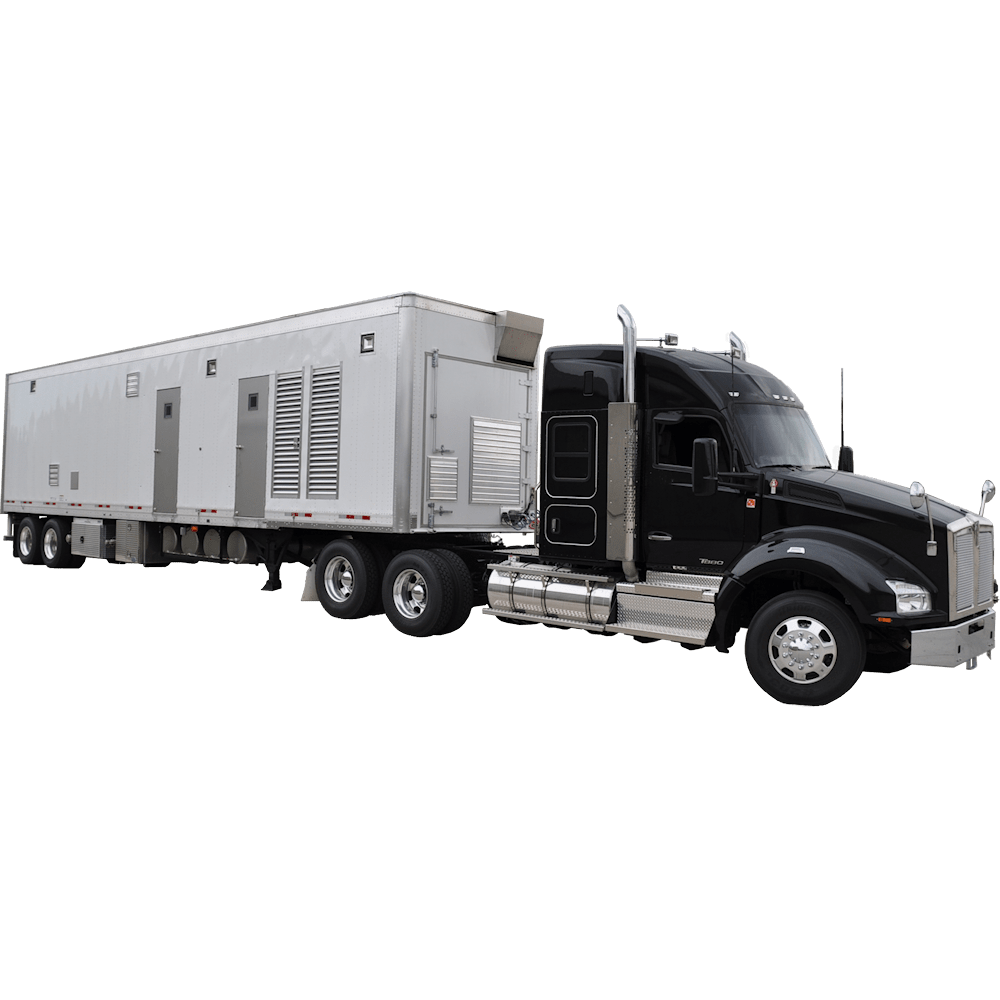

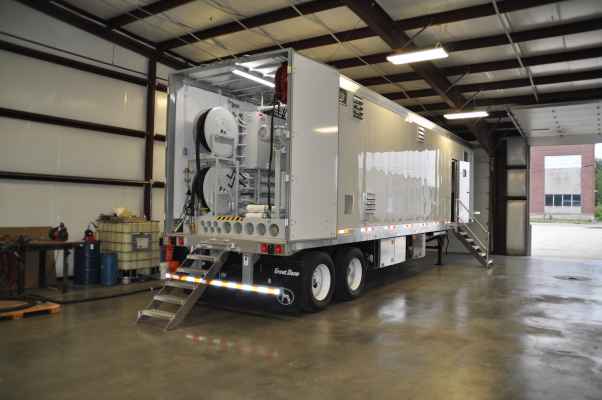

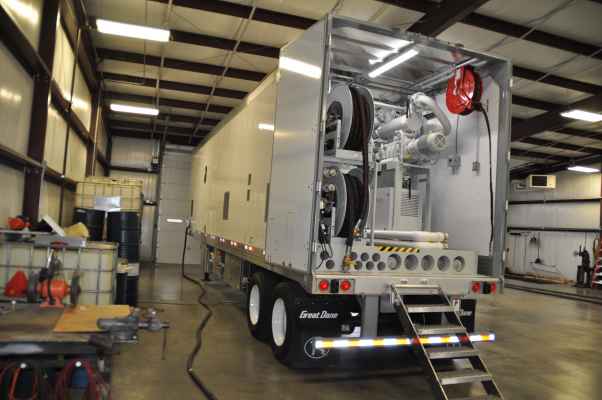

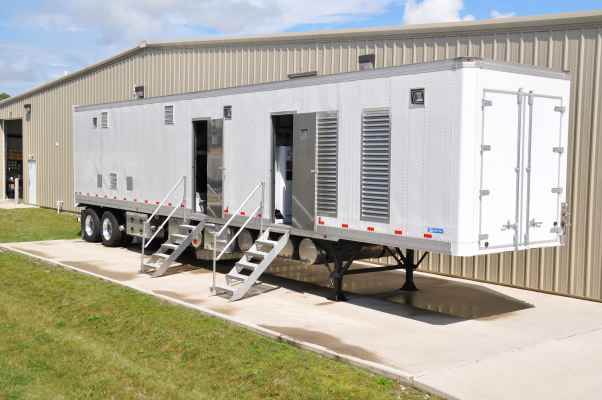

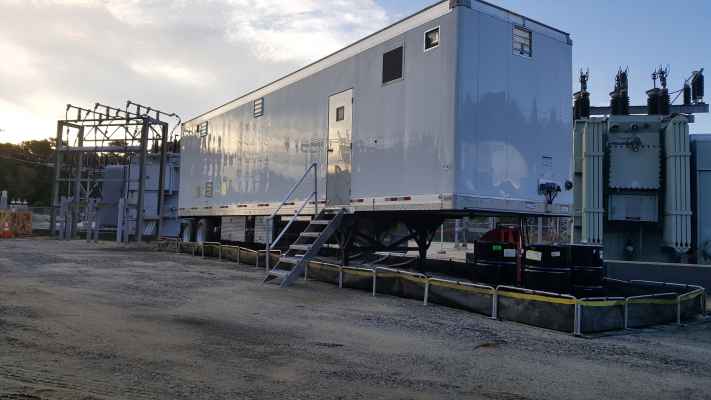

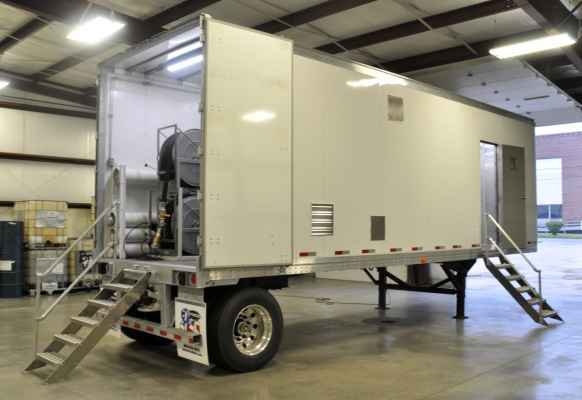

Dry Van Trailer Examples
