Enclosed Deck Over Axle Cargo Trailer

All “deckover” cargo trailers are specifically engineered to accommodate equipment load and weight distribution to provide optimum towing conditions.  Consult SESCO with special requests.

Image is not available

Unlike a standard cargo trailer, the equipment deck on a “deckover” cargo trailer rides above the axle assembly and incorporates a leaf spring or air bag suspension. The “deckover” design accommodates wider, longer, and heavier equipment payloads. All “deckover” cargo trailers are specifically engineered to accommodate equipment load and weight distribution to provide optimum towing conditions. Weight capacities (GVRW) range from 20,000 to 30,000 Lbs. SESCO will provide the trailer size and weight capacity options available for the system being quoted.

Hitches

  • Gooseneck fifth wheel or ball
  • Bumper pintle ring

Axels

  • Dual 10K,12K,15K
  • Oversized axles – GVRW de-rated for load limits to reduce driver certification requirements

Brakes

  • Weight dependent
    • Electric, electric over hydraulic, air (Optional)

Suspension

  • Leaf spring
  • Air ride

Construction

  • Steel main beams
  • Aluminum roof
  • Hardwood flooring
  • Aluminum sheet & post sidewalls
  • Lined interior sidewalls
  • DOT LED lighting
  • Radial tires w/ spare
  • Full swing rear doors
  • Custom doors as required

Oil Connection Options

  • Dual rear connections
  • Dual belly (road & curbside) connections
    • Connection enclosures
  • Single rear connection w/ rear hose reel

Vacuum Connection Options

  • Single rear door accessible connection
  • Dual belly (road & curbside) connections
    • Connection enclosures
  • Dual sidewall connections (road & curbside)

Trailer Heavy Duty Aluminum Entry Stairs

  • Single or dual removable handrail
  • Belly mounted pull out entry door landing

External Storage

  • Boxes
    • 18” tall, Aluminum diamond plate, lockable, weather tight,
    • 24”, 36”, 48”, 60” widths
    • Box floor liners
  • Drawer assemblies
  • Waste oil tank

Area Partitions

  • Clear full view breakaway sliding access door partition
  • Traditional solid partition w/ hinged steel access door
    • Optional exterior sound insulation

Entry & Access Doors

  • Trailer grade Duraplate construction with locking cam
  • 304 SS commercial-grade exterior man door & frame
    • Deadbolt lockset
    • Observation window

Windows

  • Non-opening man door & sidewall
  • Opening sidewall

Ventilation

  • Standard provided as required
  • Actuated louvers optional

LED Lighting

  • Exterior flush wall mount flood
  • Interior ceiling mount

120V/1PH Power

  • Load center circuit breaker controlled
  • GFIC circuits
  • 15A zones as required
  • Shore power provisions

Test Apparatus Power

  • 230V/3PH Power - 30A circuit with 50' cable
  • 220V/1PH Power - 30A circuit with 50' cable

Heating & Air Conditioning

  • Numerous options available

Insulation

  • Control area, ceiling and wall insulation available

Furniture

  • Numerous options available

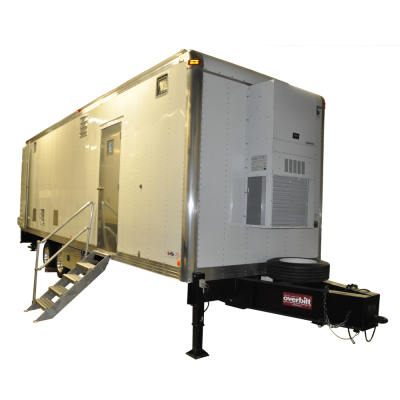

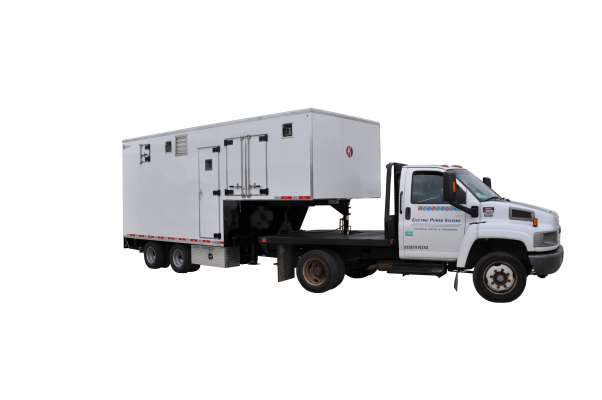

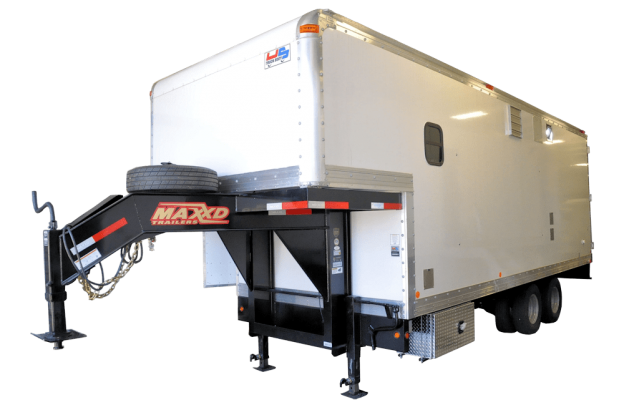

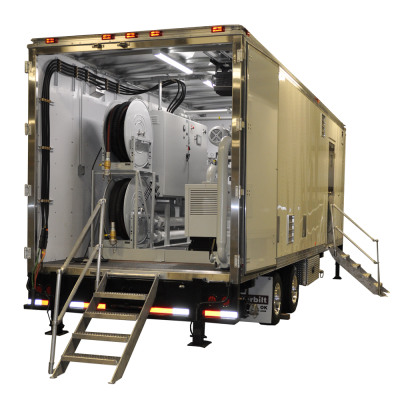

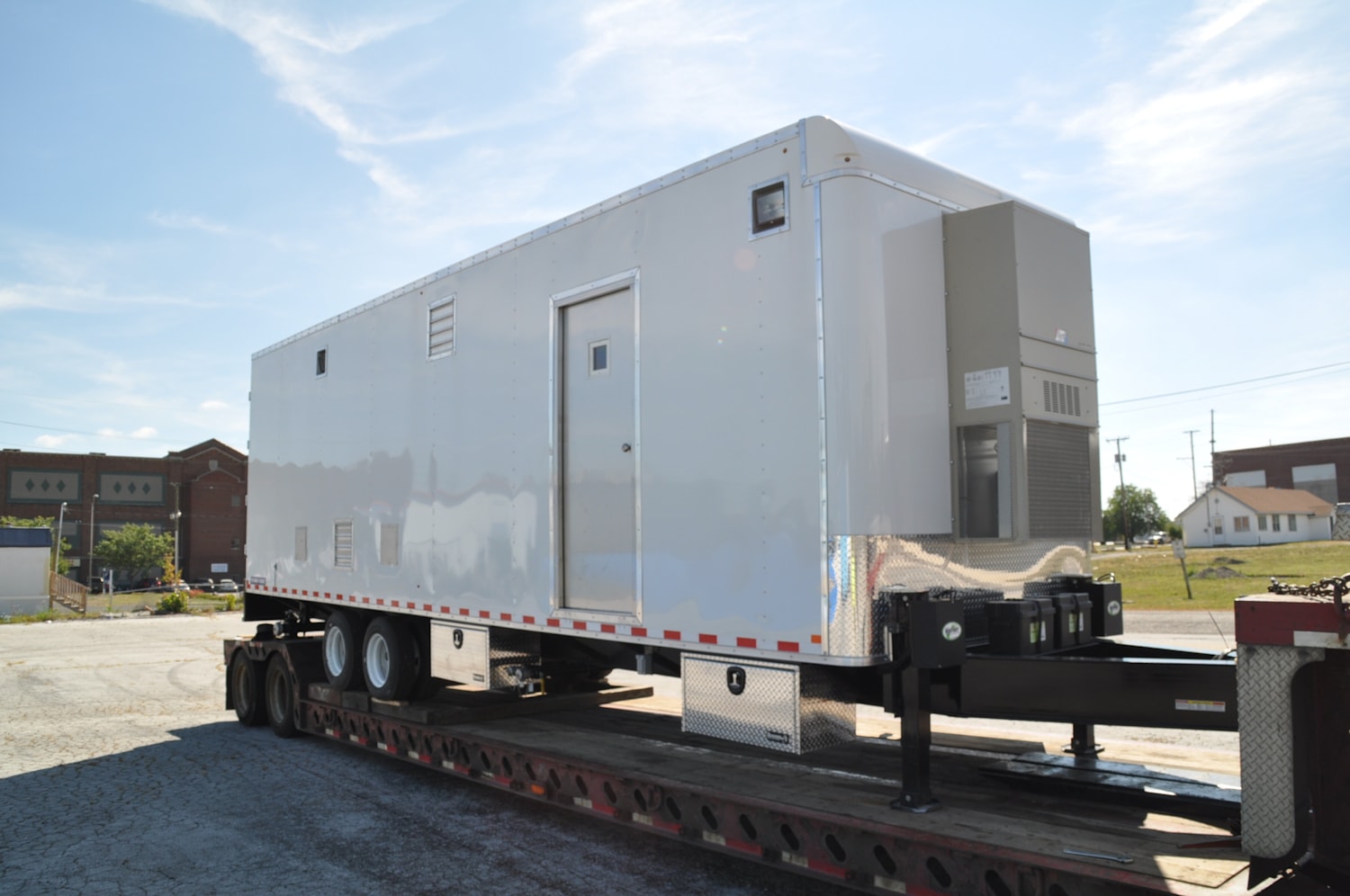

Enclosed Deck of Axle Cargo Trailer Examples
