Custom Straight (Box) Truck
Custom Straight (Box) Truck
All straight truck chassis and bodies are custom ordered to accommodate the equipment option package, maximum terrain, load, weight distribution and towing requirements.
Chassis and body specifications will be provided with proposal. All major North American chassis manufacturers are available on request.
Chassis Options
All MFG Options
Body Options
FRP or Aluminum sheet and post sidewall body
Rear hydraulic lift gates
Leveling Systems
SS body hardward
SS door frames
Sidewall insulation
Oil Connection Options
Dual rear
Dual belly (road & curbside)
Single rear with rear hose reel
Vacuum Connection Options
Single rear door accessible connection
Dual belly (road & curbside) connections
Dual sidewall connections (road & curbside)
Heavy Duty Aluminum Entry Stairs
Single or dual removable handrails
External Storage
Boxes
Aluminum diamond plate, lockable, weather-tight
18" & 24" heights
24", 36", 48", & 60" widths
18"-30" depths
Box floor liners
Waste oil tank
Control/Equipment Area Partitions
Clear full view breakaway sliding access door partition
Traditional solid partition with hinged steel access man door
Optional exterior sound insulation
Entry & Access Doors
Trailer grade Duraplate construction with locking cam
304 SS commercial-grade exterior man door & frame
Deadbolt lockset
Observation window
Windows
Non-opening man door & sidewall
Opening sidewall
Ventilation
Standard provided as required
Actuated louvers optional
LED Lighting
Exterior flush wall mount flood
Interior ceiling mount
120V/1PH Power
Load center circuit breaker controlled
GFIC circuits
15A zones as required
Shore power provisions
Test Apparatus Power
230V/3PH Power - 30A circuit with 50' cable
220V/1PH Power - 30A circuit with 50' cable
Heating & Air Conditioning
Numerous options available
Insulation
Control area, ceiling and wall insulation available
Furniture
Industrial grade - welded extreme heavy duty, built to order
Commercial grade
Accessory Options
ANSUL fire suppression systems
Surveillance systems

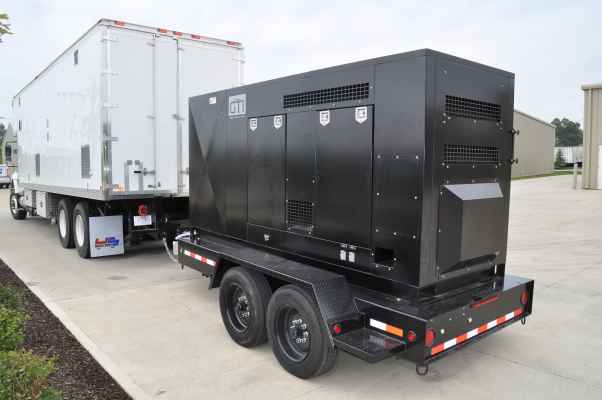

Secondary accessory power diesel generators
Test equipment

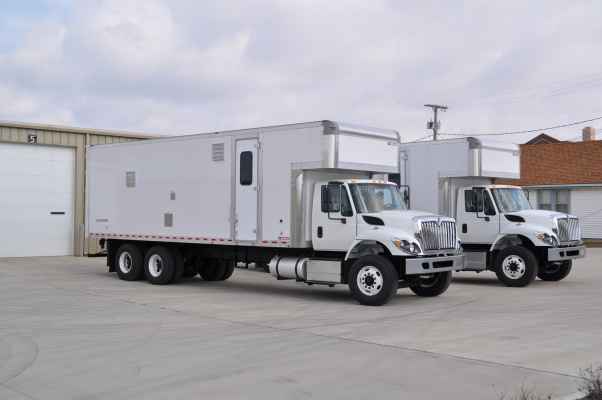

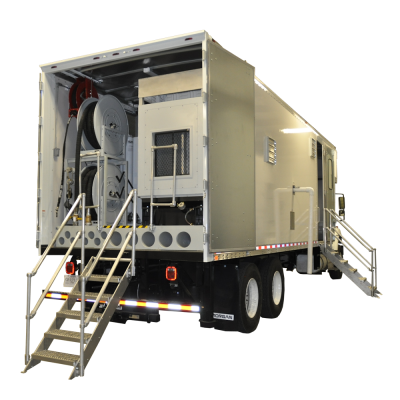

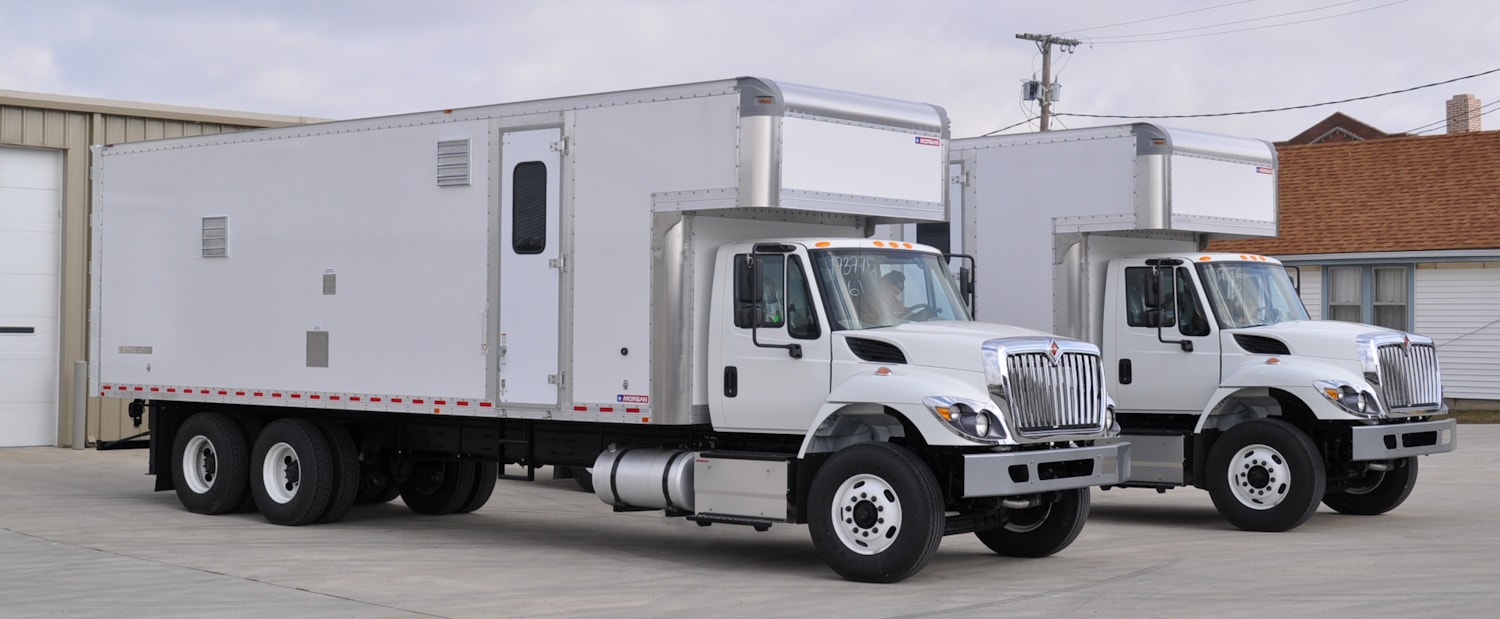

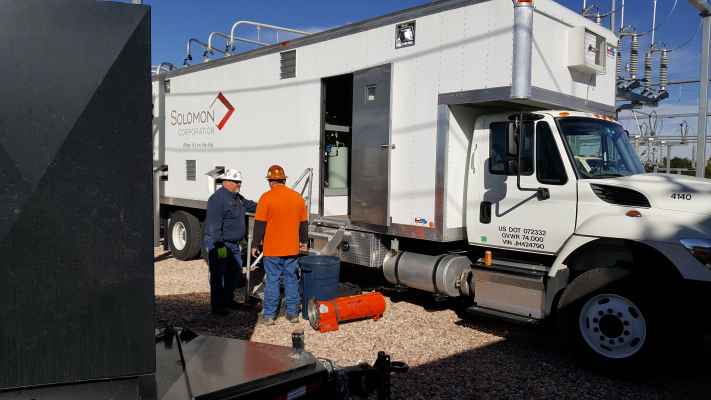

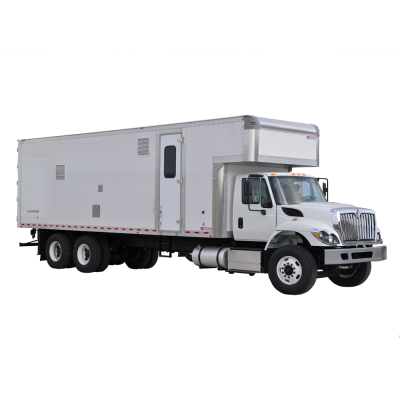

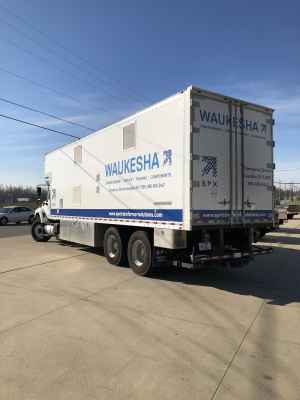

Straight Truck Mounting Examples
